Structures data is treated the same way as text interval data. Structures columns can also be linked to text interval columns.
There are several ways to edit structures data, either:
•click on the structures data column on the log
•double click on the structures data object on the sidebar
•select Edit > Structures
•or select Popup > Structures

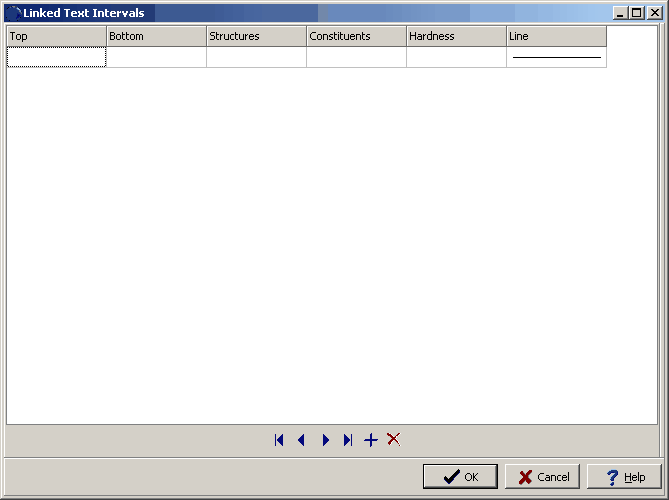

After this the Linked Text Interval Data form will be displayed. This form will have three or more columns depending on whether the structures data is linked to other interval text data on the template. At the bottom of this form there are buttons to move to the first, previous, next, and last interval or to add and delete intervals.
(The appearance of the form will differ slightly depending on if it is WinLoG or WinLoG RT)
The following information can be edited on this form:
Top Depth: This is the top depth of the interval.
Bottom Depth: This is the bottom depth of the interval.
Text: If there are other linked text intervals in the template, this is the text to display in the text interval. The name of this column will be the name of the text interval data.
Line Type: This is the line style to be used for the top and bottom boundaries of the text interval. When the line is clicked on the Line Properties form is displayed. This form is used to set the line style, thickness, and color. The line style can be set to none to display no line at the boundary
Structures: This is the structures to display in the interval. A specially designed font is provided with the program for use with this column called GAEA Structures. When this column is clicked on the Structures form below will be displayed. This form has two columns. one with the structure symbol and one with the description. Structures can be added to the interval by selecting them on this form and clicking the Ok button or by double-clicking on them.
