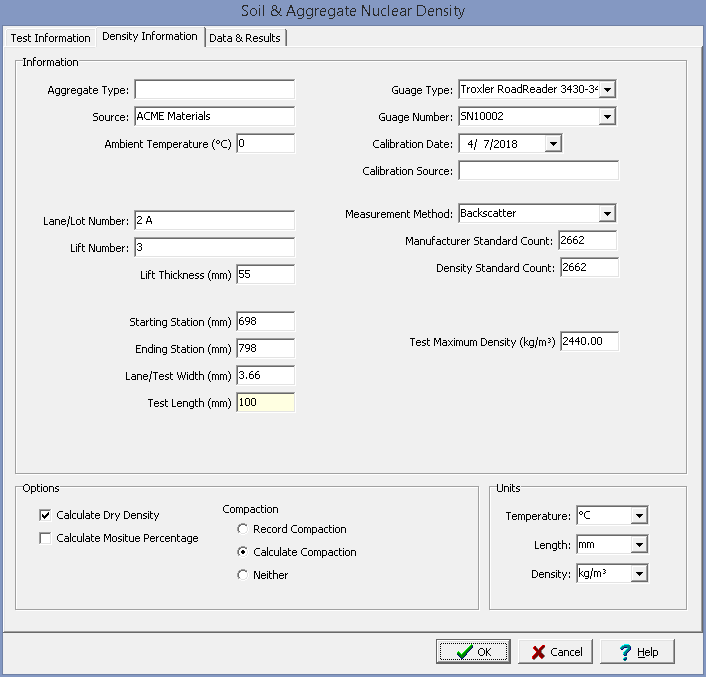

This tab is used to specify the information used for the density determination.



clip40350



The following can be entered and displayed on this tab:



Information



Aggregate Type: This is used to specify the type of soil and aggregate.



Source: This is used to specify the source of the soil and aggregate.



Ambient Temperature: This is used to specify the ambient temperature.



Lane/Lot Number: This is used to specify the lane or lot number being tested.



Lift Number: This is used to specify the lift number being tested.



Lift Thickness: This is used to specify the lift thickness.



Starting Station: This is used to specify the starting station being tested.



Ending Station: This is used to specify the ending station being tested.



Lane/Test Width: This is used to specify the lane or test width.



Test Length: This is the calculated test length. It is the difference between the starting and ending stations.



Gauge Type: This is used to select the type of nuclear gauge from a predefined list of gauge types.



Gauge Number: This is used to select the gauge number from a predefined list of gauge numbers.



Calibration Date: This is used to specify the last calibration date of the gauge.



Calibration Source: This used to specify the calibration source.



Measurement Method: This used  to select the measurement method, either backscatter or direct transmission.



Manufacturer Standard Count: This is used to specify the manufacturer standard count.



Density Standard Count: This is used to specify the density standard count.



Rod Depth: If the measurement method is direct transmission, this is the depth of the rod.



Test Maximum Density: This is used to specify the maximum density determined in the laboratory.



Options



Calculate Dry Density: Check this box to calculate the dry density otherwise the dry density can be recorded on the next tab.



Calculate Moisture Percentage: Check this box to calculate the moisture percentage on the next tab.



Record Compaction: Check this box to enter the compaction for each measurement instead of calculating the compaction.



Calculate Compaction: Check this box to calculate the compaction for each measurement.



Neither: Check this box to not calculate or record the compaction for each measurement.



Units



Temperature: This is used to select the units for temperature.



Length: This is used to select the units for length.



Density: This is used to select the units for density.
