Customizing a Well Column

<< Click to Display Table of Contents >>

Navigation:  Chapter 5  Boring/Wells > Templates > Editing a Template > Template Columns > Columns Tab > Customizing Columns >

Customizing a Well Column

Previous pageReturn to chapter overviewNext page

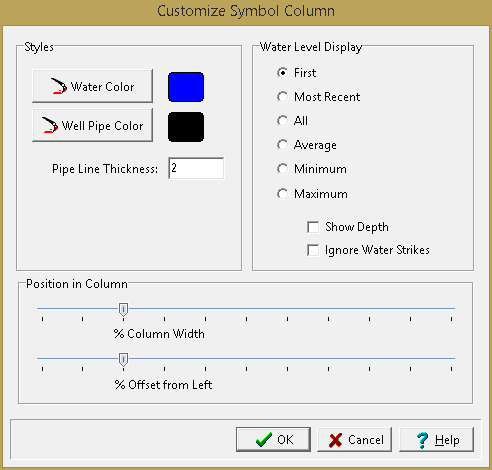

The Well columns can be be customized using the Customize button on the Columns tab. The Customize Well Column form will be displayed.



clip40844

(The appearance of the form will differ slightly depending on if it is WinLoG or WinLoG RT)



The following can be edited on this form:



Water Color: This is the color that will be used to draw the water table symbol in the well. To change the color, press the Water Color button. The Color form page will be displayed, and either a basic or a custom color can be specified.



Well Pipe Color: This is the color to use when drawing pipes and screens in the well. To change the color, press the Well Pipe Color button. The Color form will be displayed, and either a basic or a custom color can be specified.



Pipe Line Thickness: This is the width of the line to use when drawing pipes and screens.



% of Column Width: This is the percentage of the width of the column to use for the hole. The horizontal scale of the well column will then be set such that the hole diameter specified above is equal to this percentage of column width. When setting the % of Column Width space should be made on the sides of the hole for annotation.



% Offset: This is the percentage of the column width to offset the hole from the left side of the column. This parameter is used to position the hole inside the column. The sum of the % Offset and

% of Column Width should always be less than or equal to 100. For example, if the % of Column Width is 70 and the % Offset is 10. Then the leftmost 10% of the column would be used for annotation, the next 70% of the column would contain the well components, and the last 20% of the column would be used for annotation.



Water Level Display: This is used to select the water levels to display on the log when there are multiple water levels.
