After the model has been executed, the output for the model will be displayed.

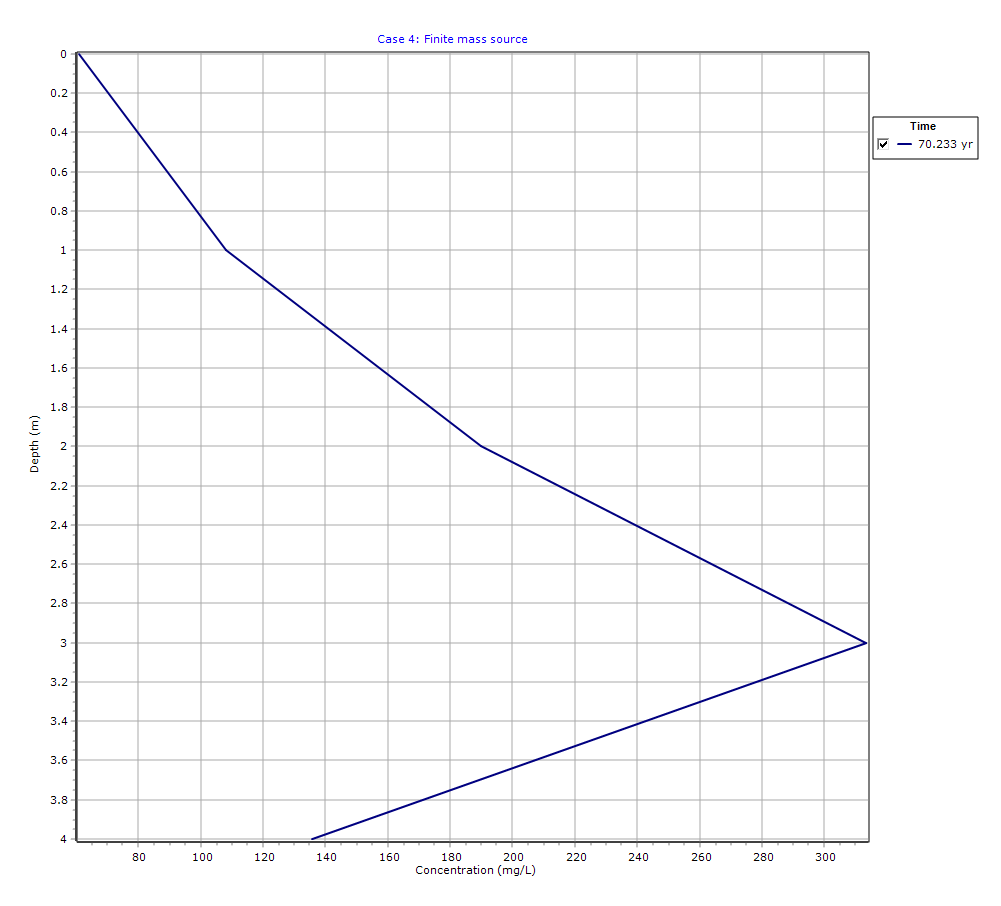

Depth vs Concentration



The Depth vs Concentration chart can be displayed by selecting the Depth vs Concentration item for the Chart Type.

clip0240

Output Listing



To display the output as a text listing that will show the calculated concentrations as numbers, click on the List tab.The maximum concentration in the aquifer in this example is 136 mg/L. This peak occurs at 70 years.





POLLUTEv8


Version 8.00 Beta
Copyright (c) 2021
GAEA Technologies Ltd., R.K. Rowe and J.R. Booker



Case 4: Finite mass source



THE DARCY VELOCITY (Flux) THROUGH THE LAYERS  Va = 0.03 m/year



Layer Properties



Layer

Thickness

Number of Sublayers

Coefficient of Hydrodynamic Dispersion

Matrix Porosity

Distributon Coefficient

Dry Density

Aquitard

4 m

4

0.01 m²/a

0.4

0 cm³/g

1.5 g/cm³



Boundary Conditions


   Finite Mass Top Boundary


         Initial Concentration = 1000 mg/L
         Rate of Increase = 0 mg/L/yr
         Volume of Leachate Collected = 0.27 m/a

         Thickness of Waste = 0 m

         Waste Density = 0 kg/m³
         Proportion of Mass = 0
         Volumetric Water Content = 0
         Conversion Rate Half Life = 0 year
         Reference Height of Leachate = 7.5 m


   Fixed Outflow Bottom Boundary


         Landfill Length = 200 m
         Landfill Width = 300 m
         Base Thickness = 3 m
         Base Porosity = 0.3

         Base Outflow Velocity = 6 m/a



Laplace Transform Parameters


    TAU = 7     N = 20     SIG = 0     RNU = 2



Maximum Base Concentration Parameters


   Depth to Search = 4 m
   Lower Time Limit = 25 yr
   Upper Time Limit = 400 yr
   Base Concentration Accuracy = 0.1
   Maximum Search Attempts = 25


 Maximum Base Concentration and Time of Occurrence


Time
yr

Depth
m

Concentration
mg/L

Preceeding Time

Preceeding Concentration

Exceeding Time

Exceeding Concentration

7.0233E+01

0.0000E+00

6.1040E+01











1.0000E+00

1.0820E+02











2.0000E+00

1.8998E+02











3.0000E+00

3.1335E+02











4.0000E+00

1.3589E+02

6.8517E+01

1.3550E+02

7.1949E+01

1.3548E+02


   Number of Search Attempts = 5
