Boring/Wells can either be printed individually or multiple logs can be printed within a project.





Individual Log



To print the log directly while is is opened:



select Popup > Print

click the Print button on the toolbar





Multiple Logs

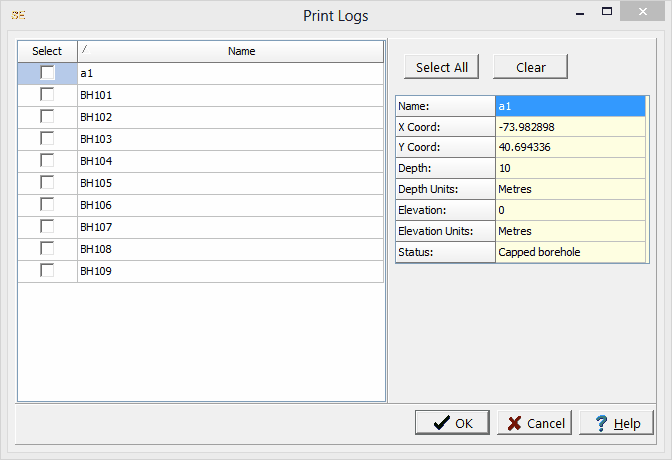

To print multiple logs within a project, the project must be displayed and no log can be opened. Then select File > Print Boring/Well and the Print Logs form below will be displayed. One or more logs can be selected from this form by checking the select button next to the log. In addition, all of the logs can be selected by clicking on the Select All button and none of the logs can be selected using the Clear button.



clip1460

(The appearance of the form will differ slightly depending on if it is WinLoG or WinLoG RT)





The printing of the log as part of a page layout is described in Chapter 3 in the section of Page Layouts.
