Water and Well Data

Previous pageReturn to chapter overviewNext page

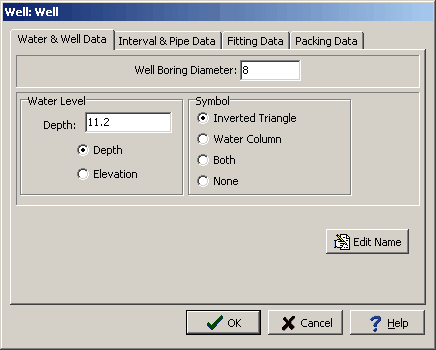

clip0555

(The appearance of the form will differ slightly depending on if it is WinLoG or WinLoG RT)



The following information can be edited on this tab:



Well Boring Diameter: This is the diameter of the hole. The well diameter will be used to scale the screen and pipe within the column.

For example, if the well diameter is specified as 10 inches, then a screen diameter of 4 inches will occupy 40% of the column width. By

specifying these diameters, varying screen and pipe diameters can be represented in the monitoring well.



Water Level: This is the depth to the water table. The input can be either depths or elevations, this will be used for the input of

the screen and pipe intervals as well.



Symbol: The symbol to use to draw the water table.



Edit Name: The name of the well dataset can be changed by clicking on the Edit Name button at the bottom of the tab. A new unique well name can then

be entered in the Edit Well Name form. Changing the name of the well dataset will affect whether the well is displayed in the borehole log. For

the well to be displayed the template must contain a well column with the same name.
