Exporting AGS Sample Information

<< Click to Display Table of Contents >>

Navigation:  Chapter 3 Projects > Exporting Data > Exporting AGS Data >

Exporting AGS Sample Information

Previous pageReturn to chapter overviewNext page

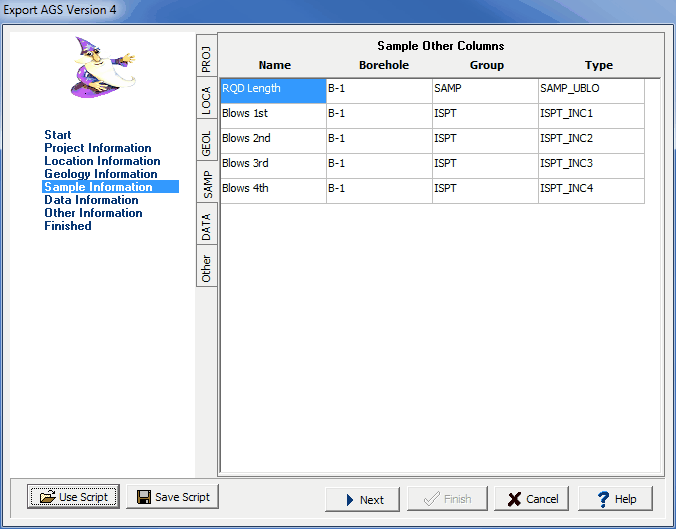

This step is used to select sample other data from the borings/wells to be exported and what AGS group and type to use for the export.



clip1247



To specify the AGS group and type for each other data field, double click on the Type column and the form below will be shown. This form can then be used to select the AGS group and type.  The AGS groups that can be selected will depend on whether exporting to AGS version 3 or 4 format.





clip1216



After the information has been entered, the Next button can be used to go to the next step.
