Core Photo Data

Previous pageReturn to chapter overviewNext page

Core photo columns are used to display photos taken of cores at different depths or can be used to display photos taken inside the boring/well itself. The photos can be in either BMP or JPEG format.



There are several ways to edit core photo data, either:



click on the core photo column on the log

double click on the core photo object on the sidebar

select Edit > Core Photo

or select Popup > Core Photo



After this the Core Photo Data form will be displayed. At the bottom of this form there are buttons to move to the first, previous, next, and last measurement or to add and delete measurements.

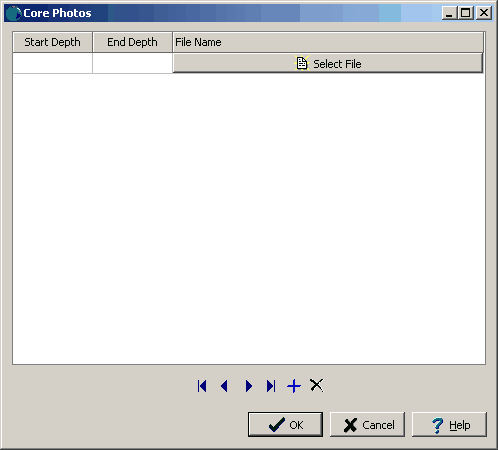

clip0510

(The appearance of the form will differ slightly depending on if it is WinLoG or WinLoG RT)



Using this form you can specify the start and end depths and file names of the core photos. When the File Name column is clicked on a button will be displayed. Press this button to select the file containing the core photo.
