Oil Show Data (Oil & Gas only)

<< Click to Display Table of Contents >>

Navigation:  Chapter 5  Boring/Wells > Borings/Wells > Editing a boring/well > Depth Related Data >

Oil Show Data (Oil & Gas only)

Previous pageReturn to chapter overviewNext page

This column is used to display the oil show data as symbols based on the percentage. There are several ways to edit oil show data, either:



click on the oil show data column on the log

double click on the oil show data object on the sidebar

select Edit > Oil Shows

or select Popup > Oil Shows

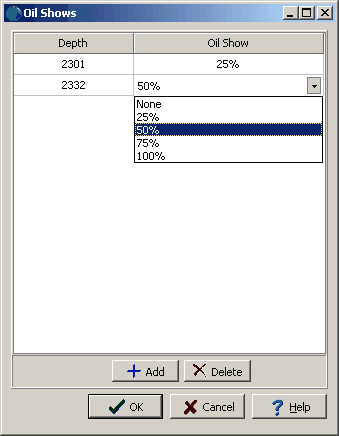

After this the Oil Shows form will be displayed. At the bottom of this form there are buttons to add and delete oil shows.



clip0205

(The appearance of the form will differ slightly depending on if it is WinLoG or WinLoG RT)



The following can be edited on this tab:



Depth: This is the depth to place the top.



Oil Show: This is used to select the percentage for the oil show.
