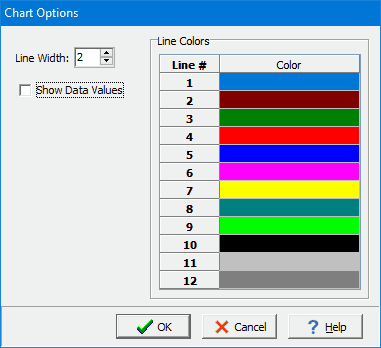

If the chart type is not Concentration vs Depth vs Time or Depth vs Time, the chart is displayed as series of lines. The line options can be edited by pressing the Options button on the Graph tab. The Chart Options form will be displayed.





The following can be edited on this form:



Line Width: This is used to select the width of the lines.



Line Colors: This is used to select the colors of each of the line series. When the color is clicked on, a combo box is displayed that can be used to select a color.



Show Data Values: Check this to show the data values for the line series.
