Aquitard

Previous pageReturn to chapter overviewNext page

To edit the aquitard data for a model click on the Aquitard tab on the left side of the model form. Note that this layer is an attenuation layer beneath the Clay liner. It is typically a layer with a hydraulic conductivity higher than that required for a clay liner (1x10-9 m/s) but less than an aquifer.

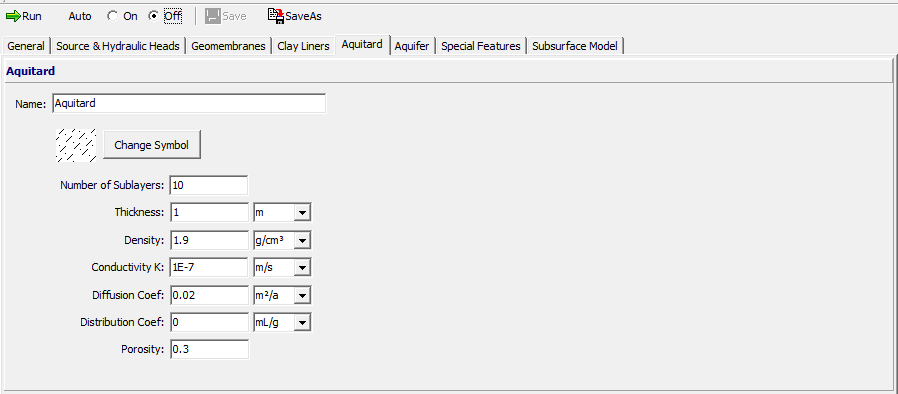

clip0067



The data entered for the aquitard is the same as that for a Primary Landfill model and is described in that section.
