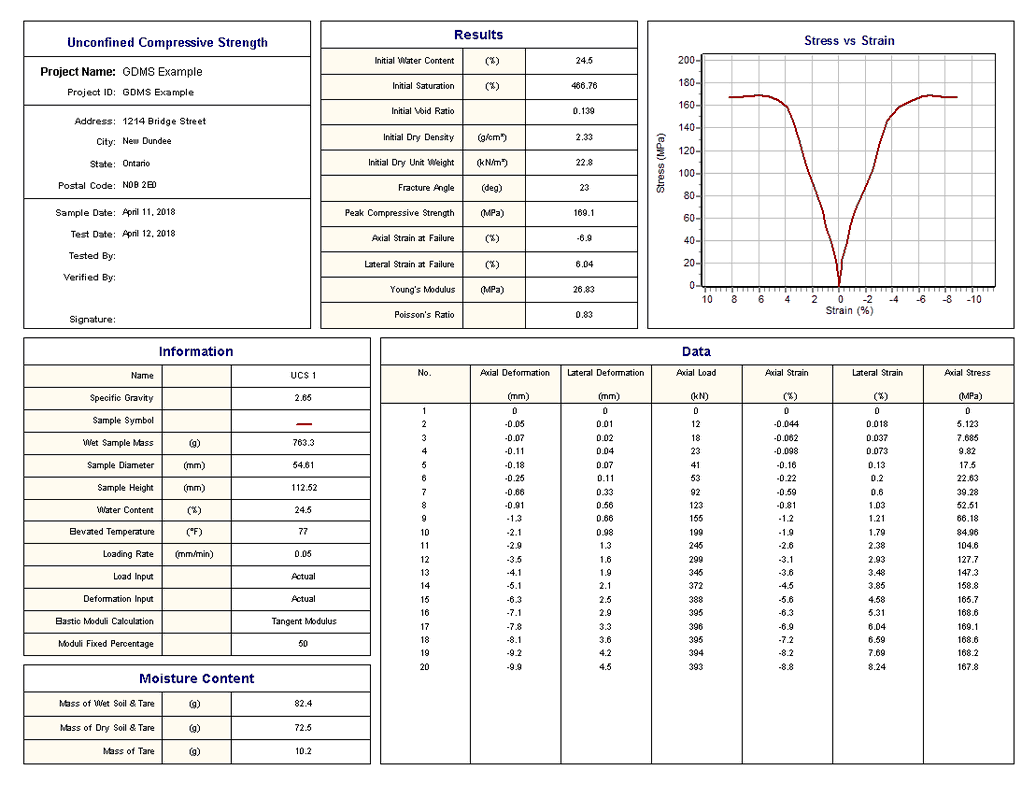

After the data has been entered and the results calculated they are displayed on a one page report. The format and layout of this report is defined by the template that was selected when the test was created. Depending on the template, a report can have one or more elements consisting of title blocks, legends, tables, graphs, etc. The majority of the information on the report is filled in by the program. On some title blocks there is user specified information that can be entered. To enter this information, edit the title block

clip40581

On the graphs a line is drawn for the measurements. The options for these graphs are set in the template.



A datasheet containing all of the data and results can also be displayed and printed. The datasheet will contain a text version of the data and results for the test. It will not contain any additional test results that are added from other tests.



This report can be printed or exported to a PDF file.
