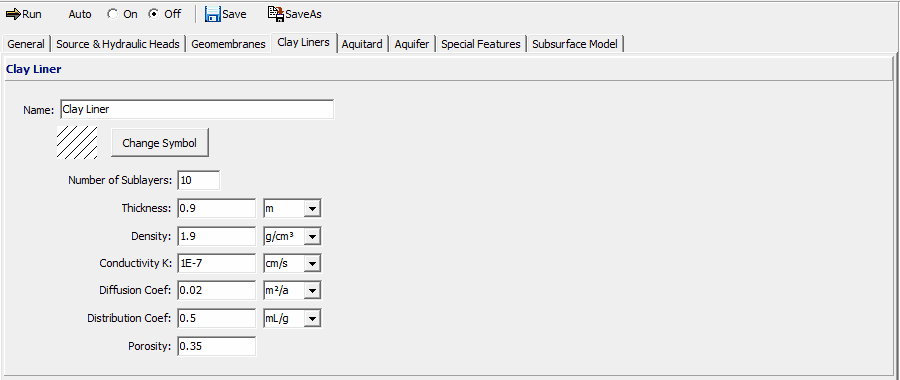

To edit the clay liner data for a model click on the Clay Liners tab on the left side of the model form.





The following parameters can be edited on this tab:



Name: This is the name of the clay liner.



Symbol: This is the symbol used to draw the clay liner. To change the symbol click on the Change Symbol button.



Number of Sublayers: This is the number of sublayers to use for the liner. Typically, a value of 10 is used.



Thickness: This is the thickness of the clay liner.



Density: This is the density of the clay liner.



Conductivity K: This is the equivalent hydraulic conductivity of the clay liner. If you are unsure what the value of this is, it is recommended to use a leakage rate landfill.



Diffusion Coefficient: This is the coefficient of hydrodynamic dispersion for the clay liner.



Distribution Coefficient: This is the distribution coefficient for the clay liner.



Porosity: This is the porosity of the clay liner.
